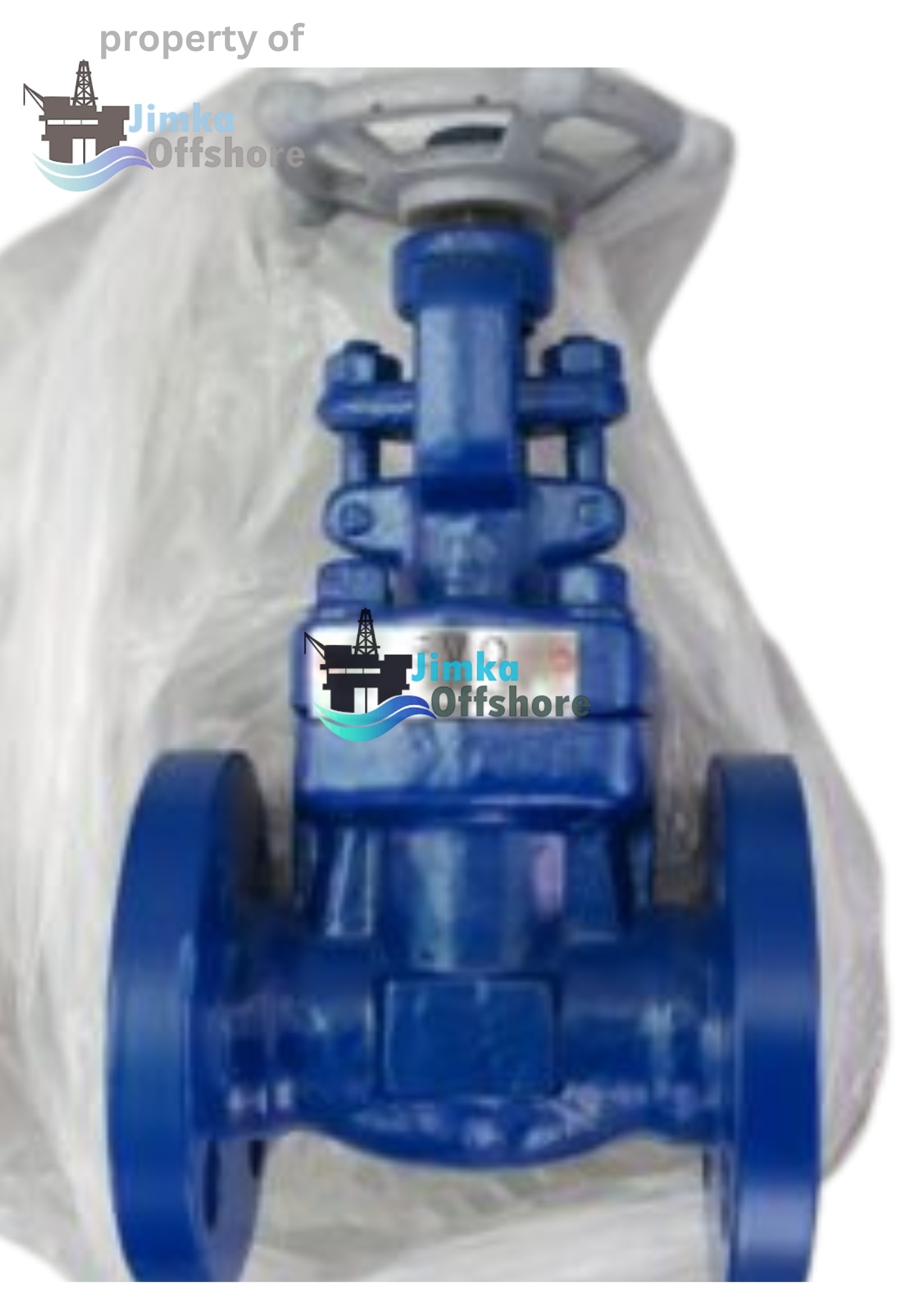

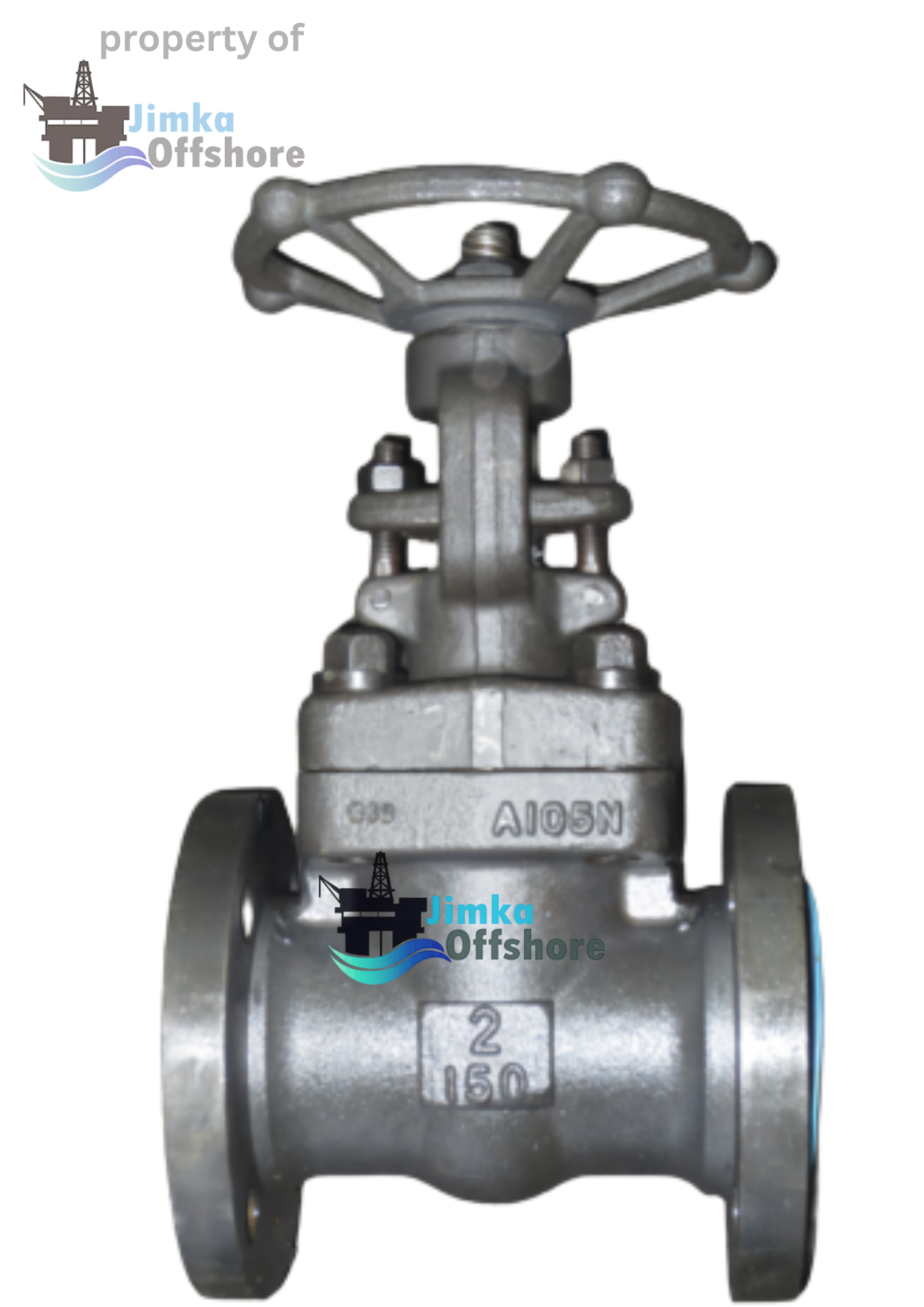

API 602 FORGED GATE VALVE

$0.00

SIZE: 1/8″~4″.
RATING:150LB
STRUCTURER:BOLTED BONNET, OS&Y, RS
BODY AND BONNET : ASTM A105
DISC: ASTM A105+STELLITE 6
STEM: ASTM A182 F316
SEAT: ASTM A182 F316+STELLITE 6
ACTUATION: HAND WHEEL

ASK MORE INFO FOR THIS PRODUCT
Compare
Add to wishlist
SKU: JV00006 Categories: , Tags: , , , ,
Description

GENERAL

Size: 1/8″~4″.
Pressure Rating:150LB~4500LB
Design Temperature: -196℃~800℃.
General applications: water, oil , gas
Design & Manufacture: API 602, API 600, ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: SW AS PER ASME B16.11 ,FLANGE AS PER ASME B16.5, EN 1092, JIS 5K-20K, BW, RTJ are available.
Structure : SOLID DISC, OS&Y, BOLTED BONNET/PRESSURE SEAL BONNET/WELDED BONNET.
OPERATOR: HAND WHEEL, ELECTRIC ACTUATED

GENERAL MATERIAL

BODY AND BONNET: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718 .
DISC: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
STEM: A182 F6A,F304,F304L,F316,F316L,F51,F53,17-4PH,XM-19,C95400,C95800,C83600,INCONEL 625,INCONEL 718,MONEL K400,MONEL K500, H-276
SEAT: A182 F6A,F304,F304L,F316,F316L,F51,F53,17-4PH,XM-19,C95400,C95800,C83600,INCONEL 625,INCONEL 718,MONEL K400,MONEL K500, H-276
OPERATOR: WHEEL
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
