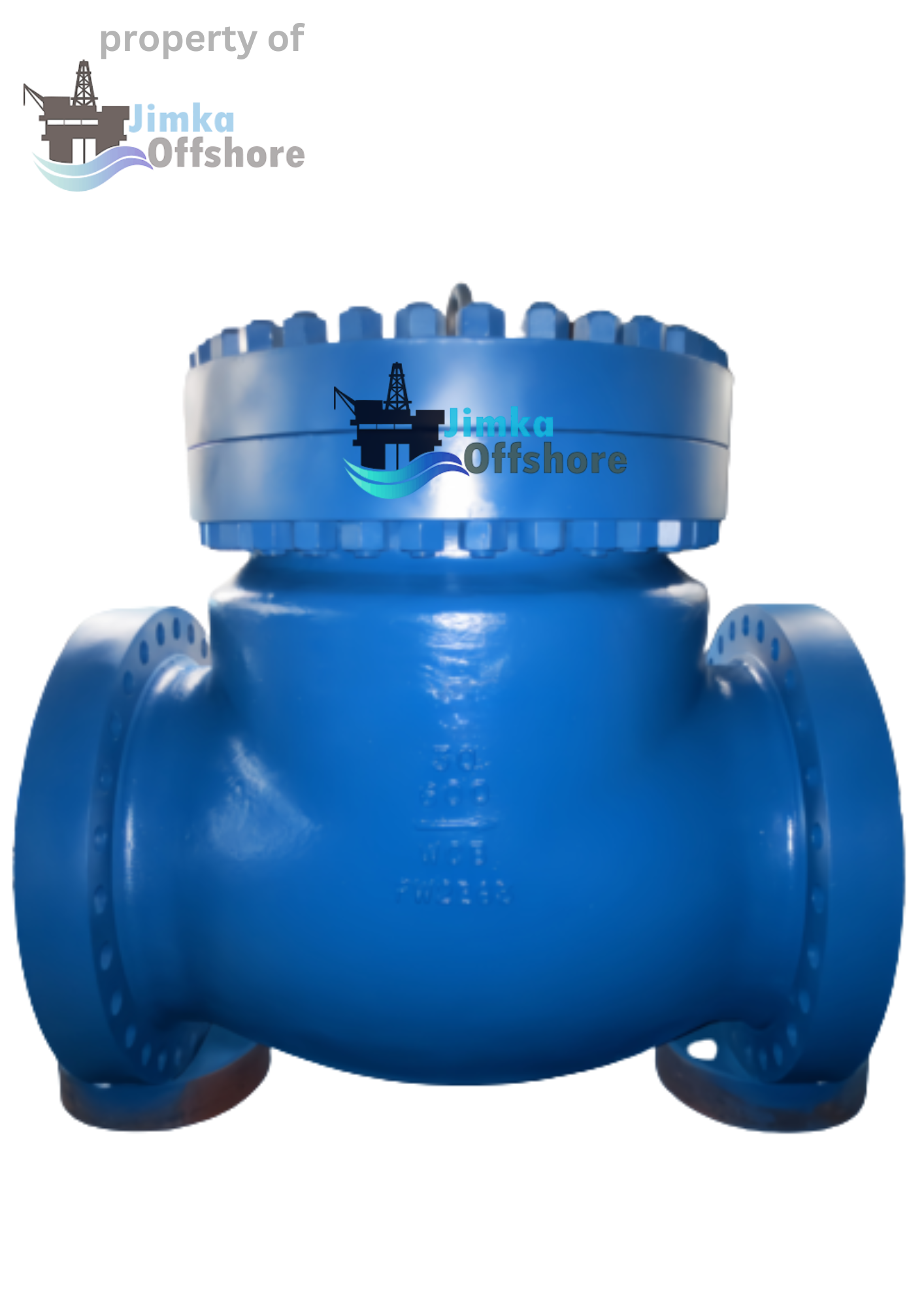

API 6D & API 594 METAL SEATED SWING CHECK VALVE CAST FULL PORT
Back to products
API 6D & API 600 MANUAL FLEXIBLE WEDGE GATE VALVE $0.00

API 6D & API 594 METAL SEATED SWING CHECK VALVE CAST FULL PORT LARGE DIAMETER

$0.00

SIZE:2″~48″.
RATING:600LB
BODY AND BONNET : ASTM A216 WCB
DISC: ASTM A216 WCB+STELLITE 6
SHAFT: ASTM A182 F6A
SEAT: ASTM A105+STELLITE 6

ASK MORE INFO FOR THIS PRODUCT
Compare
Add to wishlist
SKU: JV00018 Categories: , Tags: , , , , , , , , , , ,
Description

GENERAL

Size: 2″~48″.
Pressure Rating: 150LB~4500LB
Design Temperature: -196℃~800℃.
General applications: water, oil , gas
Design & Manufacture: API 594, API 6D, ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, API 594, ASME B16.10, BS EN 558
Connection: RF AS PER ASME B16.5,ASME B16.47, EN 1092, JIS 5K-20K. BW, RTJ are available.
Structure : SWING DISC, BOLTED BONNET / PRESSURE SEAL BONNET / WELDED BONNET, STELLITED 21 HARD FACED SEAT

GENERAL MATERIAL

BODY AND BONNET: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718.

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718+HARD FACED

SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 625/718, MONEL K-400/500

SEAT: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718+HARD FACED.

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.

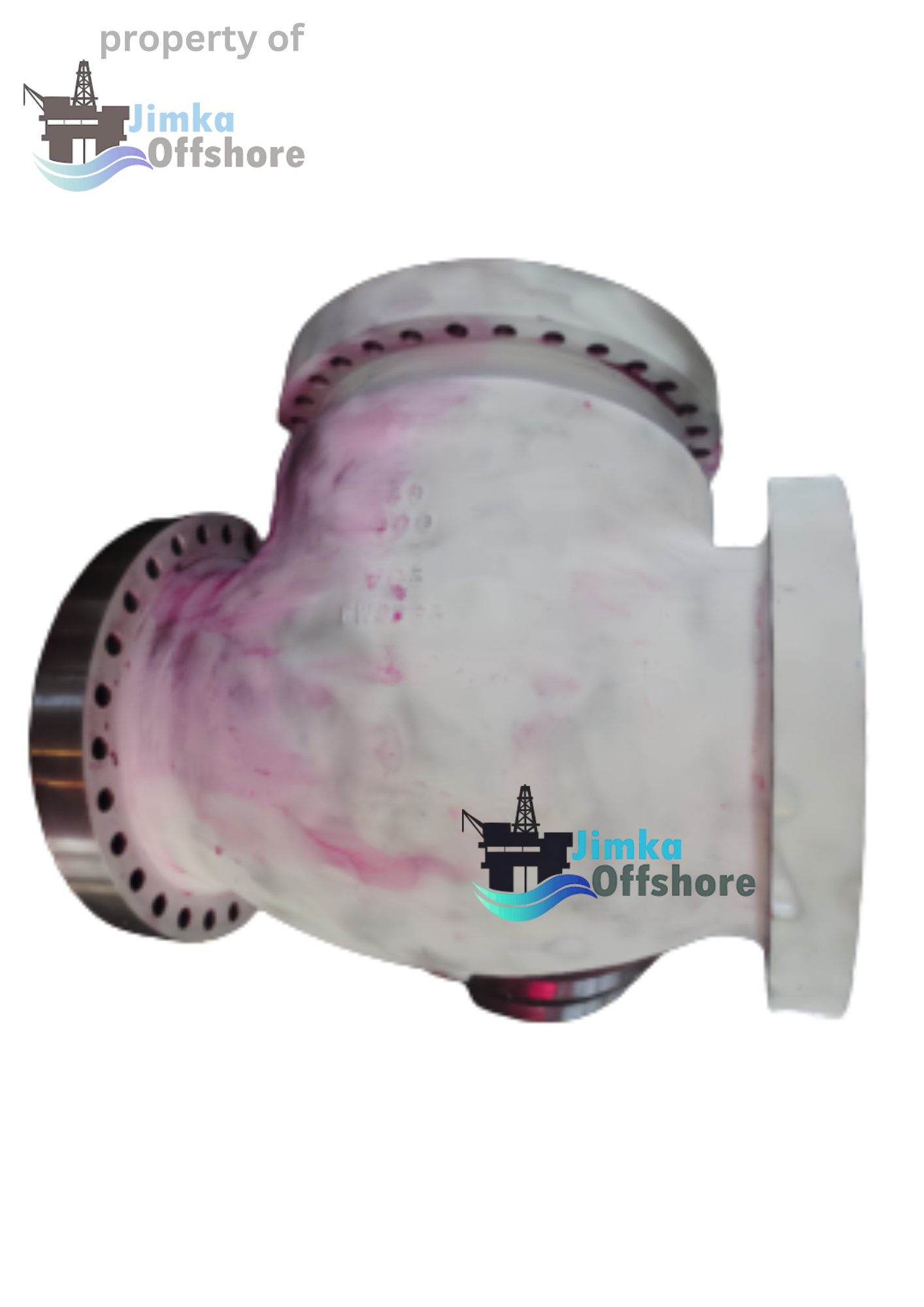

100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
