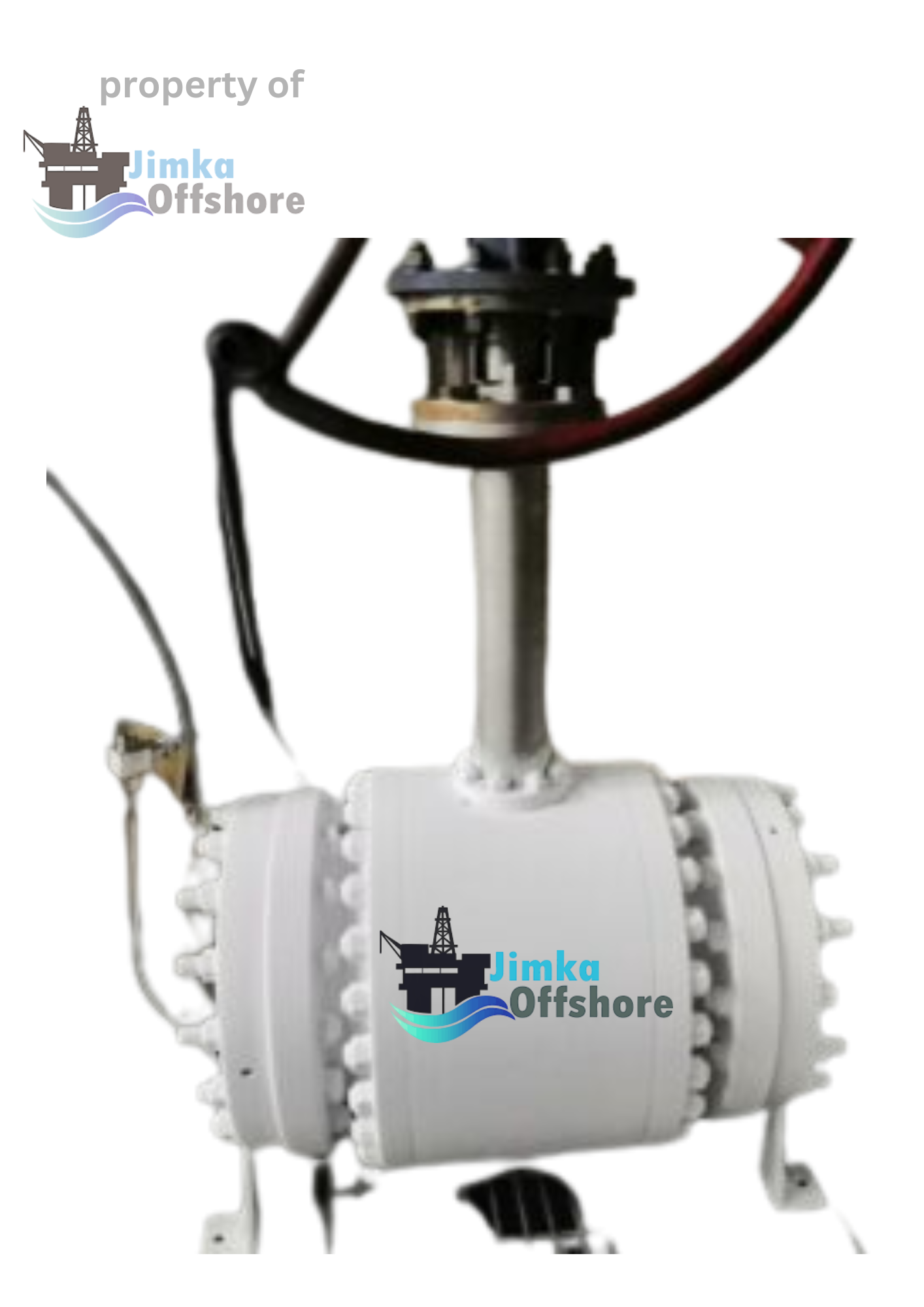

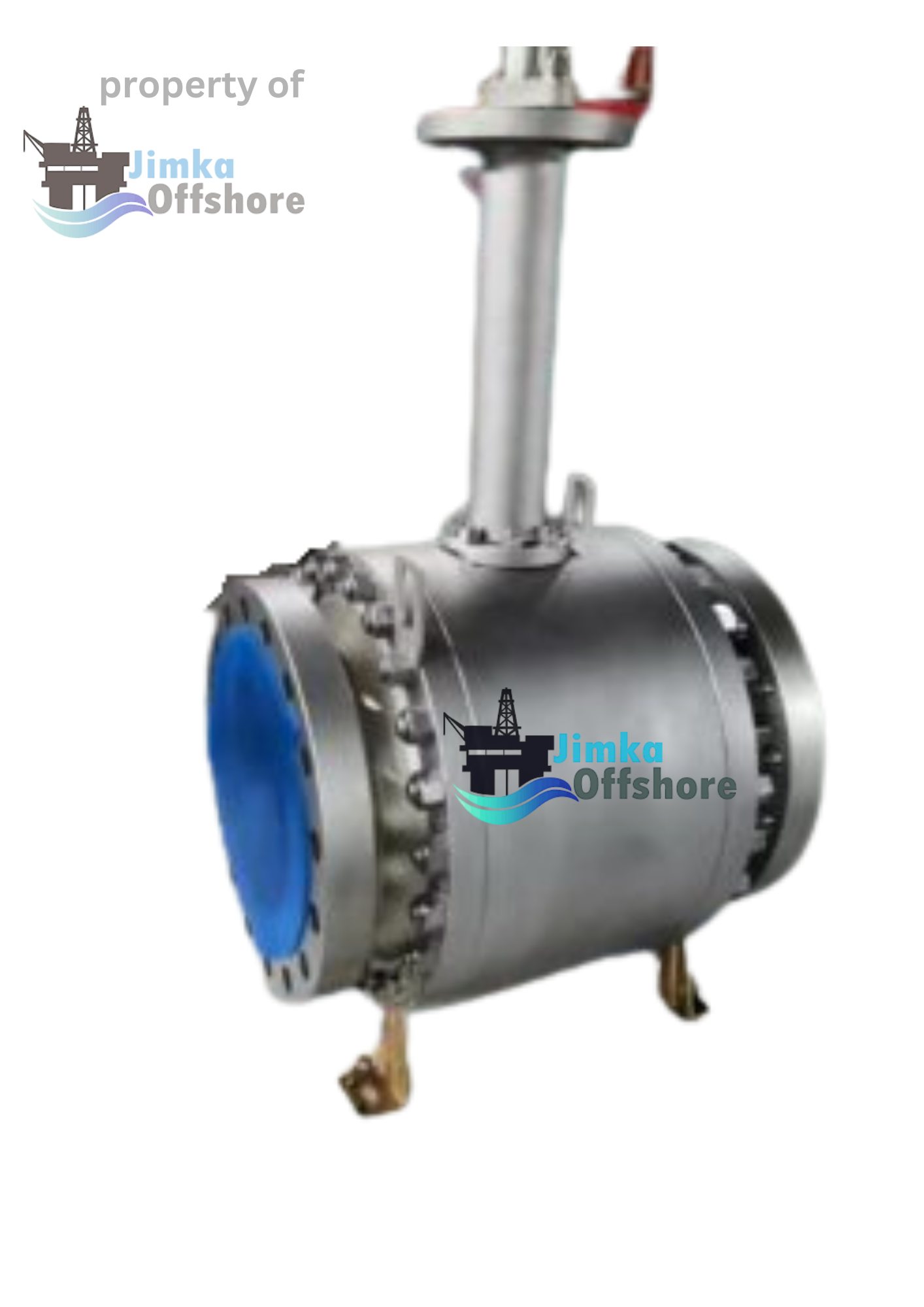

CNG LNG LPG 3-PIECE CRYOGENIC TRUNNION BALL VALVE SIDE ENTRY

$0.00

SIZE: 2″~36″.

RATING: 300LB

END: FLANGE AS PER ASME B16.5

TEMPERATURE: -196 ℃

BODY AND BONNET : ASTM A182 F304

BALL: ASTM A182 F304+HF

SEAT: PCTFE OR HF METAL

ACTUATION: MANUAL AND GEAR

ASK MORE INFO FOR THIS PRODUCT
Compare
Add to wishlist
SKU: JV00035 Categories: , Tags: , , , , ,
Description

GENERAL

Size: 2″~36″.
Pressure Rating: 150LB~4500LB, PN6~PN750
Design Temperature: -196℃~120℃
Design Manufacture Code: ASME B16.34, BS6364, API 608, API 6D，SHELL SPE77/200
Face to Face: ASME B16.10, EN558
Connection: ASME B16.5, B16.47, EN1092, RF/RTJ. ASME B16.25 BW ASME B16.11 SW/NPT ETC.
General Applications: CNG,LNG,LPG, CO2,N2 ETC.
Safety Design: anti-blow out stem, fire proof, anti-static
Special Test if Required: Low Emission, DNV/BV/SGS TPI service is available.

MAIN TYPICAL MATERIALS LIST

BODY: ASTM A182 F304/F304L/F316/F316L/F51/F53/F55, MONEL K400/K500, H-276
BALL: ASTM A182 F304/F316/F51/F53/F55,MONEL K400/K500, H-276 hardened
EXTENDED BONNET: ASTM A351 CF8/CF8M, ASTM A182 F304/F316
STEM: F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500
SEAT: SPRING ENERGIZED PCTFE, PEEK OR HF METAL
OPERATOR: LEVER OR GEAR OR ACTUATOR
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D.BS6364

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
