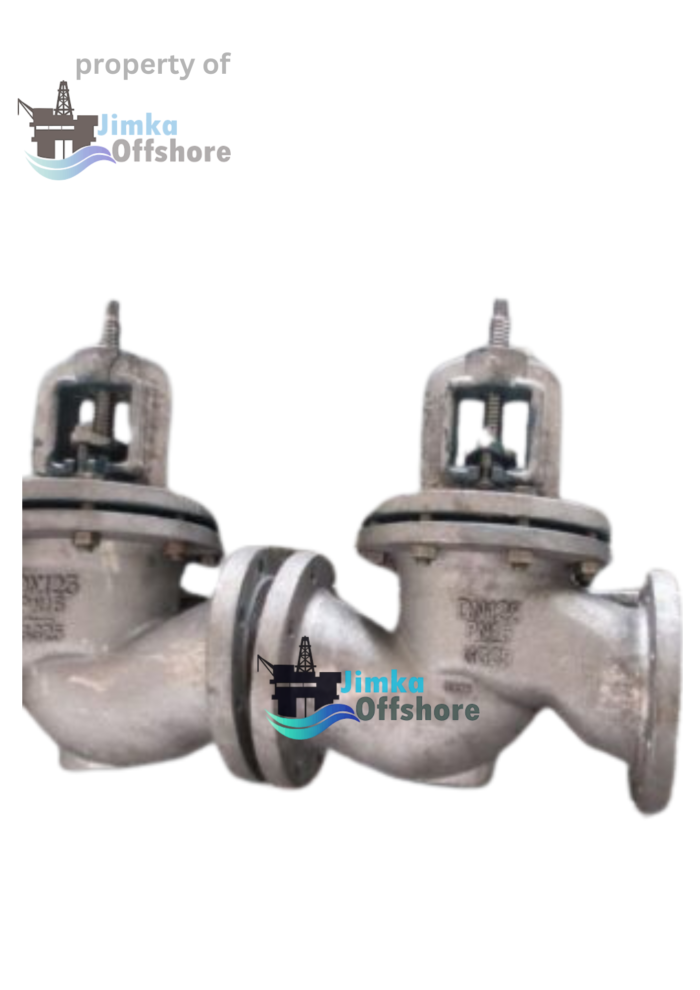

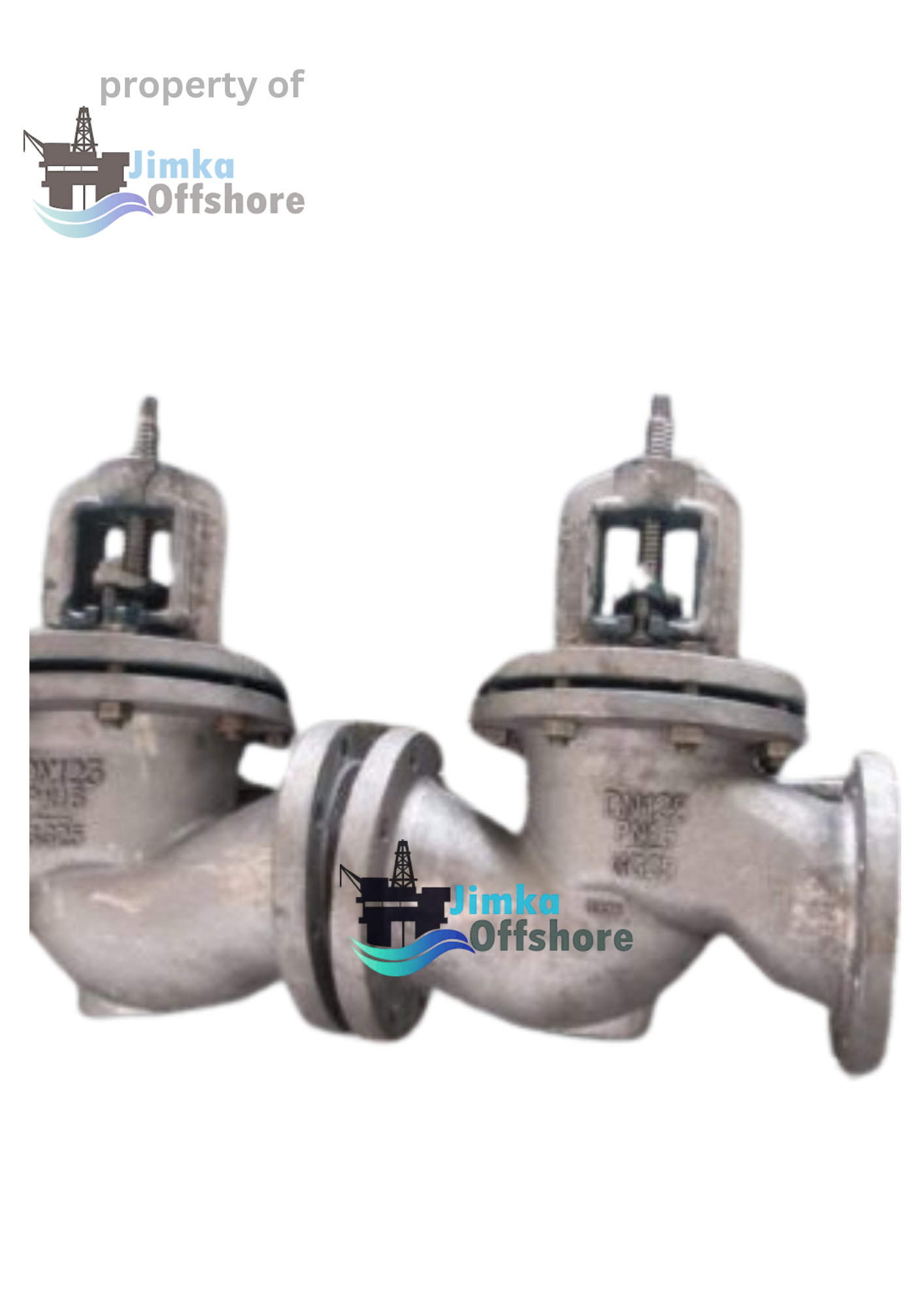

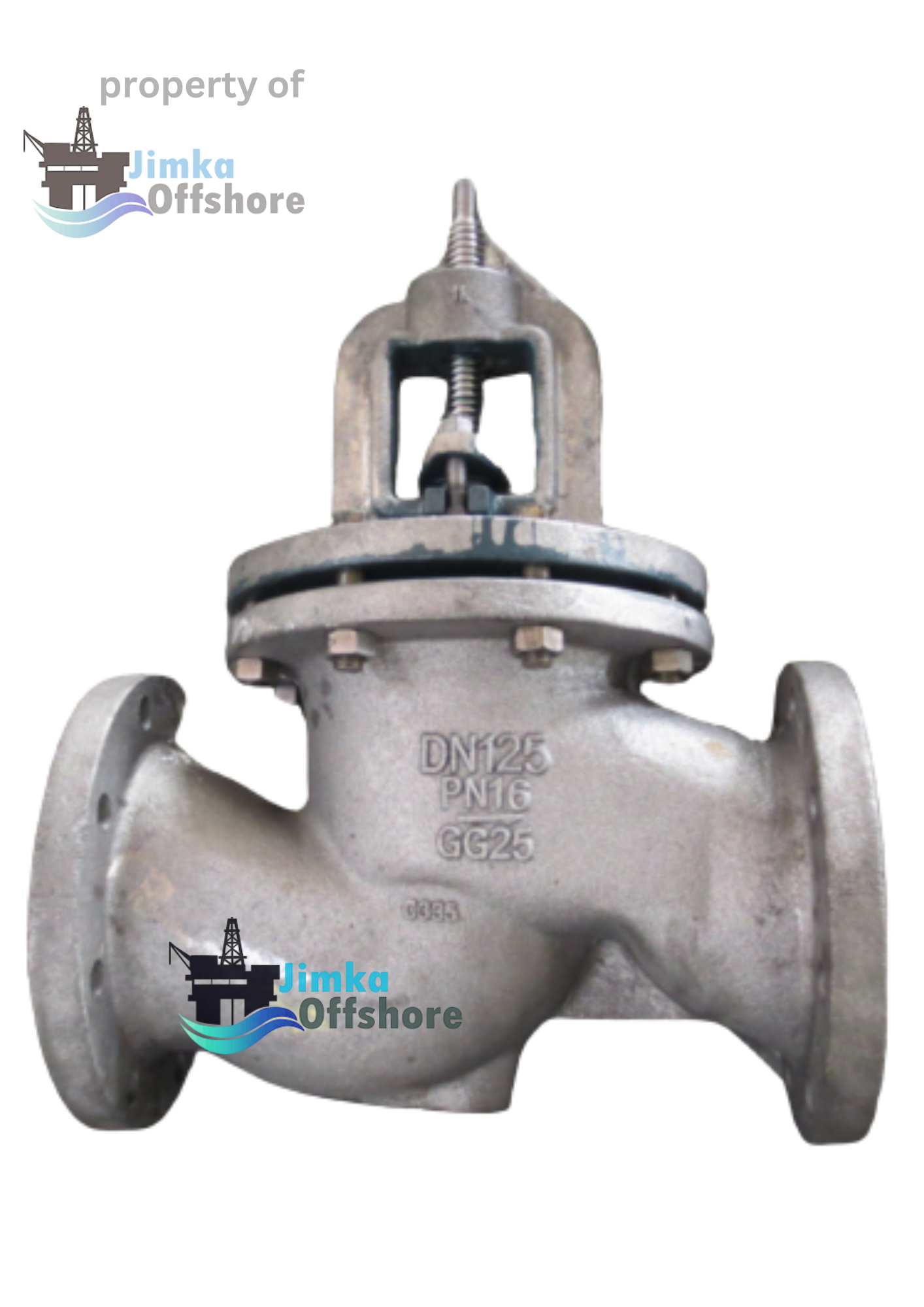

MSS SP-85/BS 5152 METAL SEATED GLOBE VALVE CAST IRON COMPACT PATTERN

$0.00

SIZE:2″~48″, DN50~DN1200
RATING:PN16
BODY AND BONNET : GG25
DISC: ASTM 536 65-45-12 + BRONZE B62/B148
SHAFT: STAINLESS STEEL 304
SEAT: STAINLESS STEEL 304
HAND WHEEL: DUCTILE IRON

ASK MORE INFO FOR THIS PRODUCT
Compare
Add to wishlist
SKU: JV00053 Categories: , Tags: , , , , , , ,
Description

GENERAL DESIGN SPECIFICATIONS

Size: 2″~48″, DN50~DN1200
Pressure Rating: 125LB/150LB,PN6~PN16,JIS 5K-16K
Design Temperature: CWP AMBIENT.
General applications: water, oil , gas
Design & Manufacture: API 594, API 6D, ASME B16.34 , MSS SP-85, BS 5152 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, API 594, ASME B16.10, BS EN 558
Connection: ASME B16.5,ASME B16.47, EN 1092, JIS 5K-20K. RF, FF are available.
Structure : RISING STEM, BOLTED BONNET, FULL BORE, METAL SEATED
OPERATOR: HAND WHEEL

TYPICAL MATERIAL LIST

BODY AND BONNET: ASTM A126 ,ASTM A536 65-45-12, A395.
DISC: ASTM A126 ,ASTM A536 65-45-12, A395
SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500
SEAT: SS304,SS316, C95400,C95800,C83600, B148, B62
HAND WHEEL: DUCTILE IRON

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
